XMA - Exilian Missile Agency
« on: May 05, 2016, 01:47:18 AM »
So, following from the rocketry thread, I've been working on the scale model of the Jupiter-C. Near as I can tell I'm doing roughly a 1:34 scale.

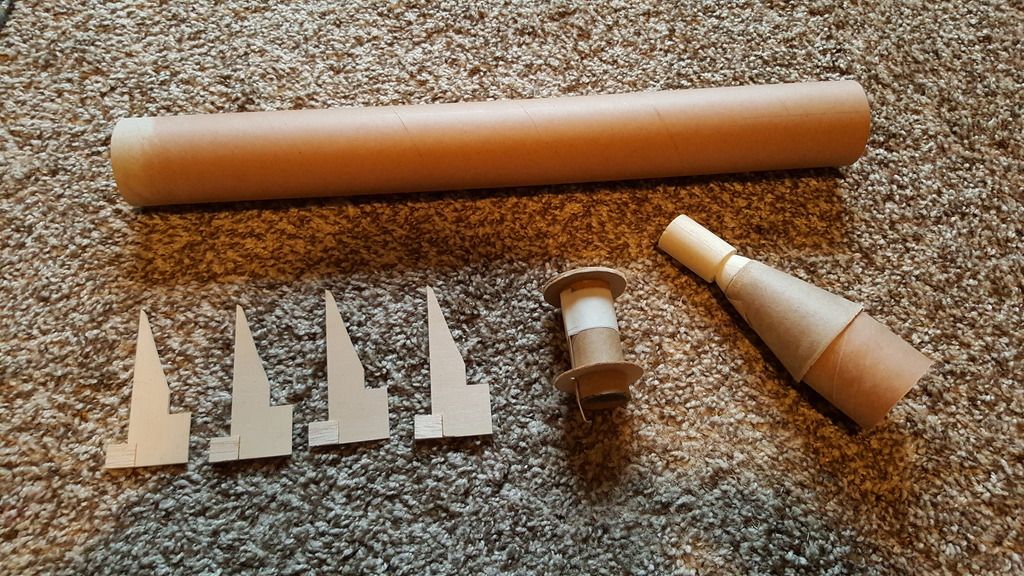

Here are the main components already constructed; fins, engine mount, nose cone, and main body. I'm pretty happy with the nose cone. It's an unusual piece to say the least. I carved out the bottom of a wooden dowel rod and attached to it a rolled piece of cardboard, which I shaped by hand since I don't know the math (or have proper measuring tools). :P I made the motor mount to fit the third size motor, one just above the levels I usually mess with, but since this is a bit larger and heavier it might need the extra thrust. I can always make an adapter for smaller motors.

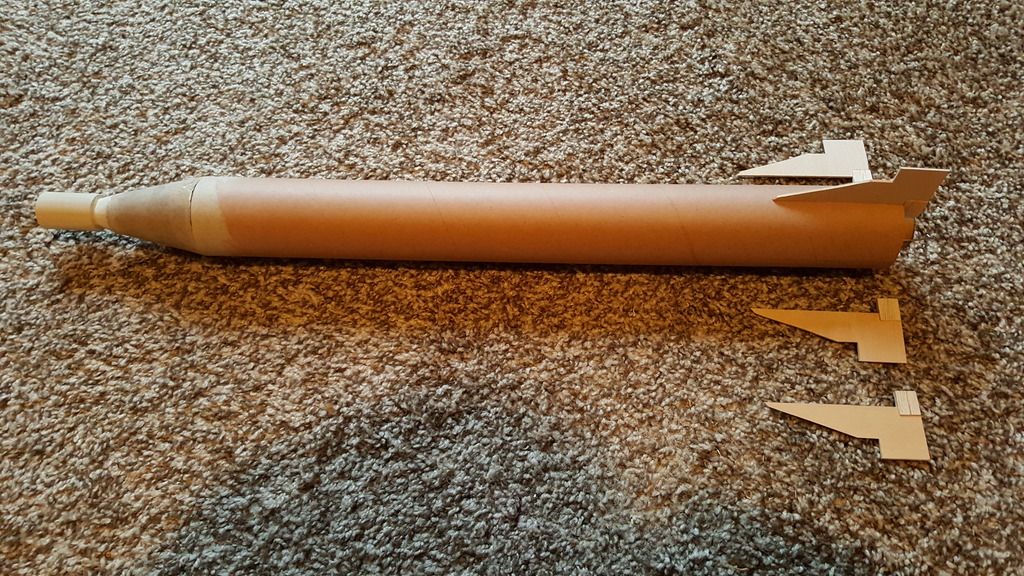

Here it is fitted together, fins not attached yet the one just sitting there for example. Just need to attach those and come up with something for the little Explorer 1 satellite that goes on the very top.

Then it's on to paint and decals...
